TSI SidePak AM510 Personal Aerosol Monitor

front and side views

Front view

The front face of the SidePak features:

  • The inlet
  • Page key
  • Enter key
  • Two toggle/scroll keys (up and down arrows)

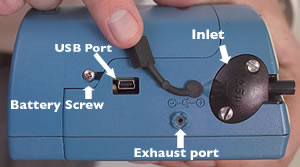

Side view

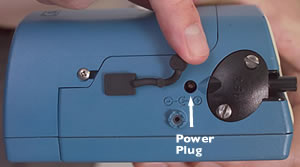

All plugs (USB port and Power Plug) are located on the side of the SidePak. A rubber plug cover

The Inlet is fitted with a 2.5 μm impactor in order to measure the concentration of particulate matter with a mass median aerodynamic diameter less than 2.5 μm, or PM2.5.

Particles of this size are released in large quantities from burning cigarettes.
